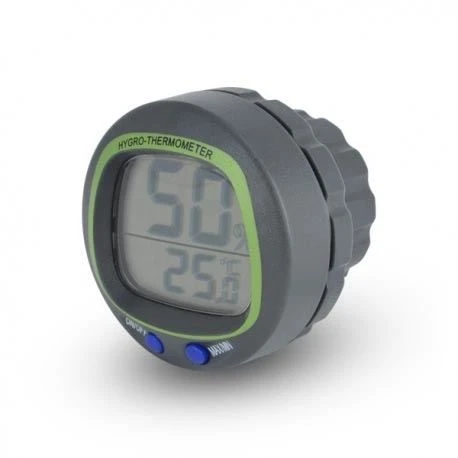

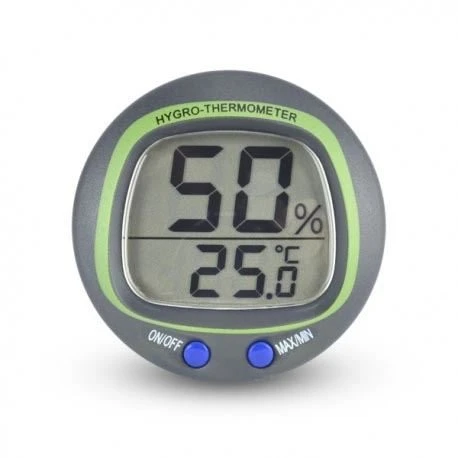

Thermo-Hygrometer – Panel Mounting

This panel mounted therma-hygrometer for panel simultaneously displays both humidity over the range of 20 to 99%rh and temperature over the range of 0 to 49.9°C with a resolution of 1%rh and 0.1°C. This thermo hygrometer is ideal for installing into display cases, mounts and humidity chambers.

The therma-hygrometer is easily installed into a panel via a mounting hole with a minimum Ø33 mm cut-out. The unit incorporates a screw clamp with a maximum panel thickness of 7 mm.

The hygro-thermometer features a max/min memory function for both temperature and humidity. The instrument can be panel mounted via a minimum Ø33mm cutout and is powered by a CR2032 coin cell battery with a life expectancy of 5000 hours continuous use.

range – temperature: 0 to 49.9°C
range – humidity: 20 to 99%rh
resolution – temperature: 0.1°C
resolution – humidity: 1%rh
accuracy – temperature: ±1°C
accuracy – humidity: ±5%rh
battery: 3 volt CR2032 lithium coin cell
battery life: 5000 hours
sensor type: temperature: silicone bandgap – humidity: capacitance polymer
display: dual custom LCD
dimensions: 50 x 41mm
weight: 42 grams
case material: plastic
measurement scale: Celsius and %rh
