Cold suction tables are used for stain removal, spot cleaning, relaxing, parchment treatment, removing creases and cockling, spot leaf casting and other paper or textile conservation work.
PEL’s experience in supplying cold suction tables has enabled us to develop a system that is high quality, affordable solution, capable of performing to the demands of conservators

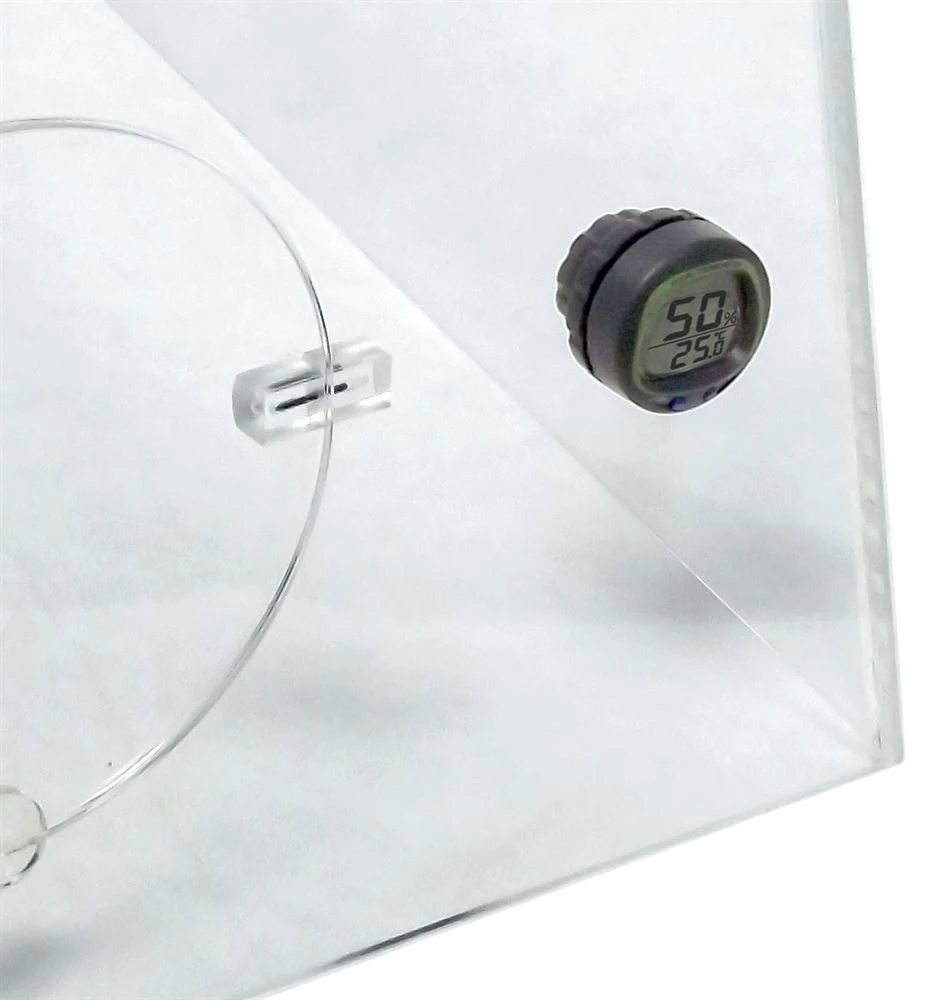

Improved humidity chamber design now includes integral digital thermohygrometer (see images) to monitor humidity levels inside the chamber.

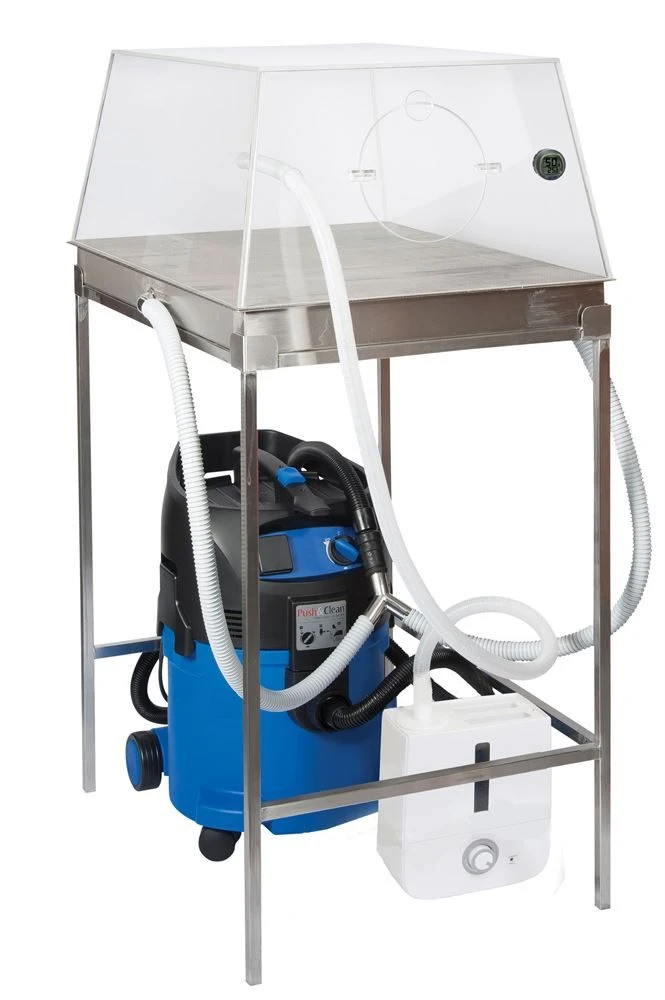

Cold Suction Table
- 800L x 600W x 60D mm – 18kg
- Manufactured completely in stainless steel to allow (if required) solvents to be used. The removable perforated top enables thorough cleaning inside the table and the vacuum airways. The stainless steel support stand (available separately) is designed for the vacuum system to be located directly beneath the work surface.
- The suction table can be used either on a workbench or the support stand.
- Comes with 2 metres of hose and Y piece (extra length of hose available). For optimum drying, remove one hose, this will allow cross airflow below the object instead of totally pulling through it, especially useful in treating textiles and parchment.
- We recommend the 561-4500 (see ‘Recommended’ items below) wet and dry vacuum with adjustable suction for use with the suction table. It’s adjustable power allows gentle suction, coupled with low noise levels.

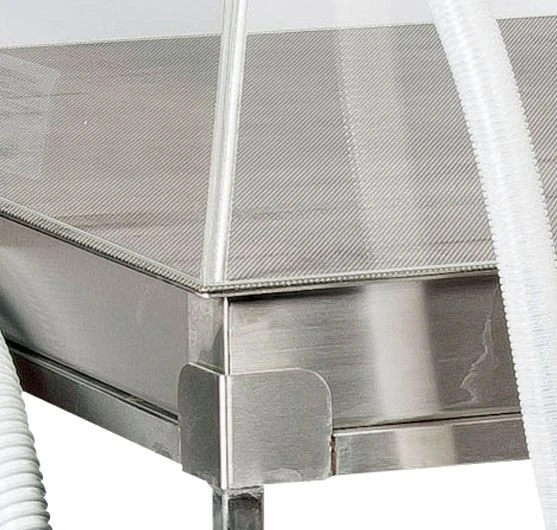

- Perforated top is loose allowing thorough cleaning. Perforations are 1.5mm with a 2.6mm pitch – 30% open area.

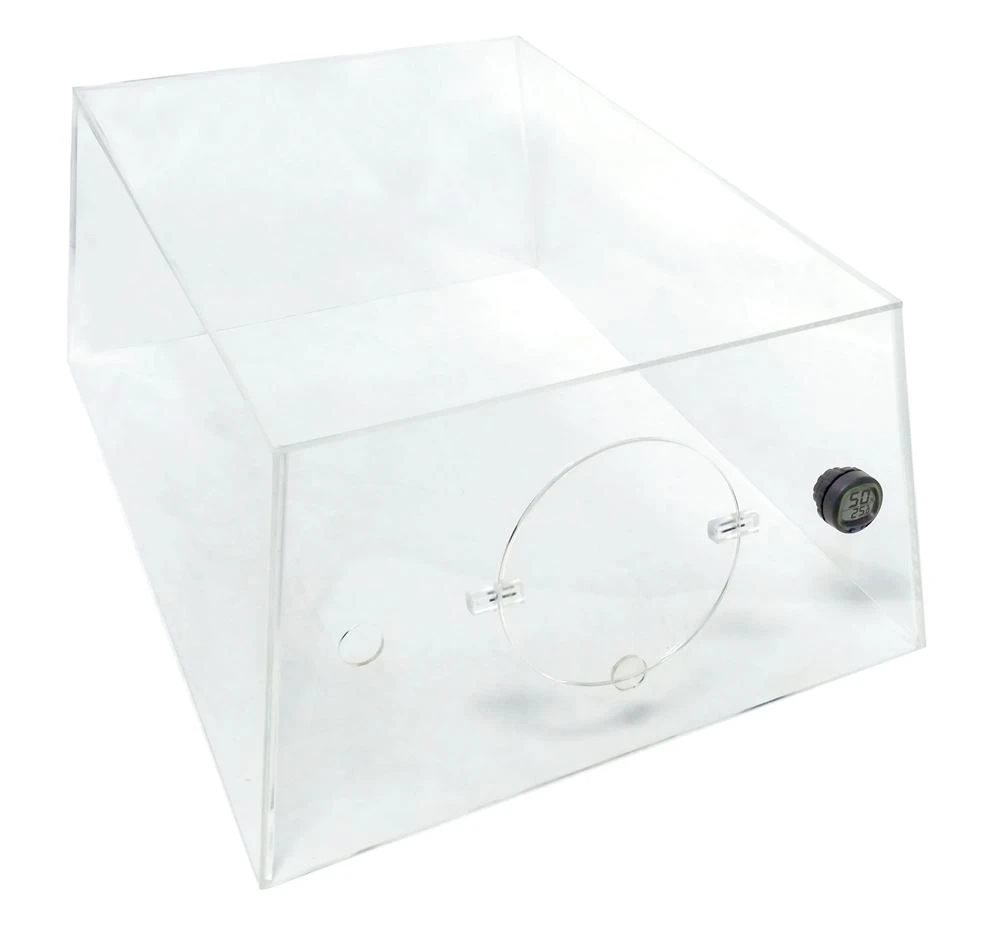

Acrylic humidity chamber
- 795L x 595W x 330D mm – Clear acrylic 6mm thickness
- When using the Acrylic humidity chamber (Pictured, 0107-8063) we suggest our Ultrasonic Humidifier Kit (Pictured, 805-7007) is used to generate moist air, which gives an equal movement of mist within the dome, allowing relaxation to be controlled and even.
- Integral thermohygrometer fitted for monitoring of RH and temperature levels inside the chamber.
- Can be used on larger suction tables when the areas outside of the chamber have been blanked off.
- Can be used without suction where only humidification is required.
- Self closing damper regulates vacuum pressure inside the chamber.
Support stand
- 780L x 580W x 900D mm – 9kg
All components are sold separately for complete system flexibility.
