Extraction Hoods & Nozzles For ULT Jumbo Fume Extraction Unit

These nozzles and extraction hoods provide additional options when controlling fumes and gases at a workstation. These nozzles all fit the ULT Jumbo mobile air filtration unit and belong to the Alsident series 50 range.

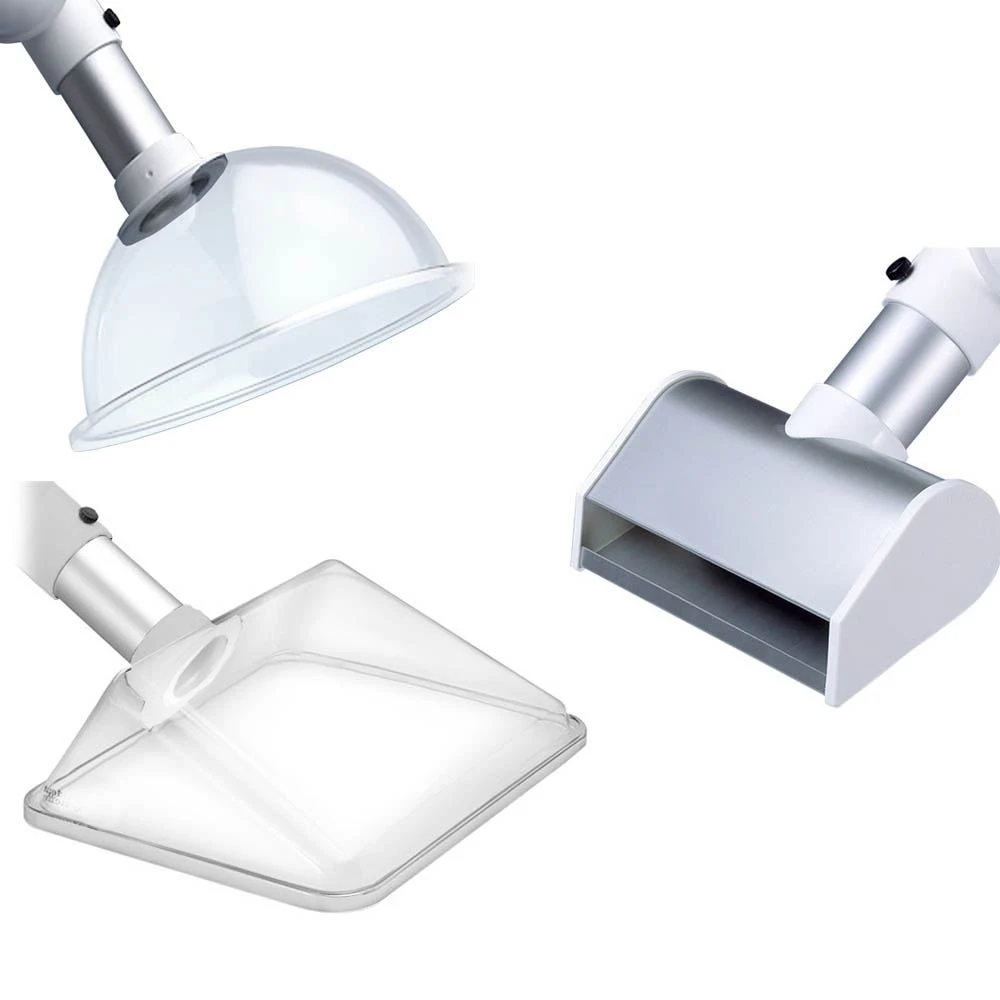

105-50205 – Wide Suction Nozzle Recommended for small concentrated sources of pollution. 200mm wide. Tube and nozzle made of anodized aluminium – surface 10 µ – and shatterproof chemical resistant polypropylene (PP). For further technical information see downloads below.

105-5024225 – Square Extraction Hood Recommended when extracting light and heavy fumes and gases. Dimension of hood: 300 x 250 mm. Increased efficiency when placed vertically on a surface. Hood made of transparent PETG, resistant to solvents. Connection tube made of anodized aluminium – surface 10 µ. The transparent hood assists in keeping a good view of the work process. For further technical information see downloads below.

105-50285 – Domed Extraction Hood Round hood recommended for light fumes, gases and small open vessels. Diameter of hood: Ø280 mm. Increased efficiency at an angled position. Hood made of transparent PETG, resistant to solvents. Connection tube made of anodized aluminium – surface 10 µ. The transparent hood assists in keeping a good view of the work process. For further technical information see downloads below.
