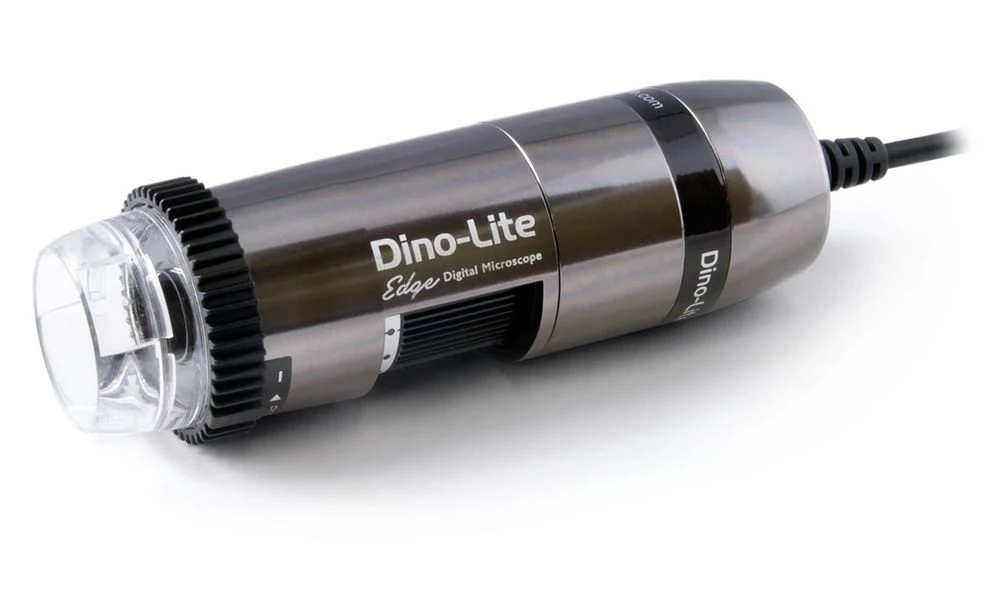

Digital Microscope – 10x – 140x / Exchangeable Caps / 5MP / EDOF | Dino Lite AM7915MZTL

Digital microscope with high resolution 5 megapixel sensor, EDOF (Extended Depth of Field) and EDR (Extended Dynamic Range) for impressive quality digital imaging. The long working distance is the right choice when working on high glare materials such as metals and plastics, and to allow space for working on an object while viewing through the microscope from a distance of 40mm-150mm.

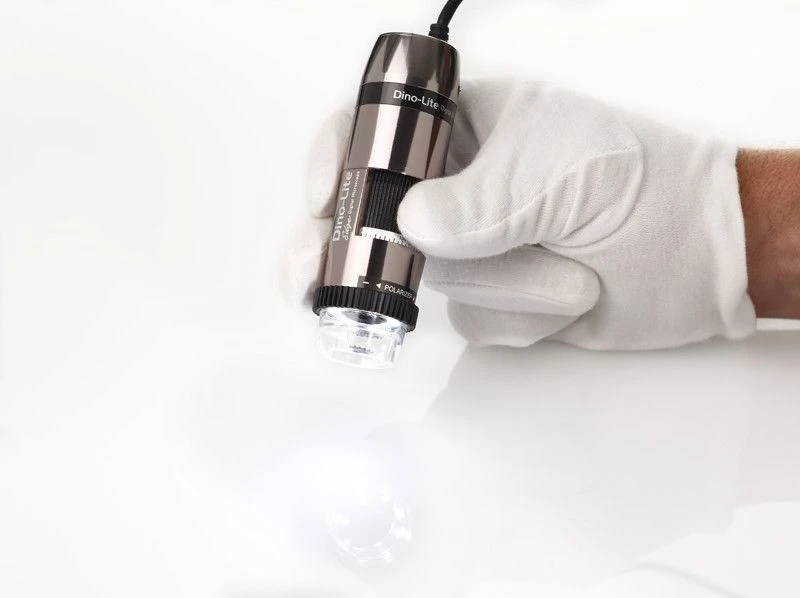

This high quality handheld microscope also features a rugged metal housing and adjustable polarization. Comes with interchangeable caps for protection from dust and liquids, alternative lighting and magnification, plus a precision calibration target. Ideal for non-destructive analysis, characterisation tests and condition recording in conservation.

• Additional caps allow further flexibility in use, i.e. sealed caps for dusty environments or protection from liquids
• 5 megapixel sensor providing 2592×1944 pixel resolution, capture video (30 fps) and still images

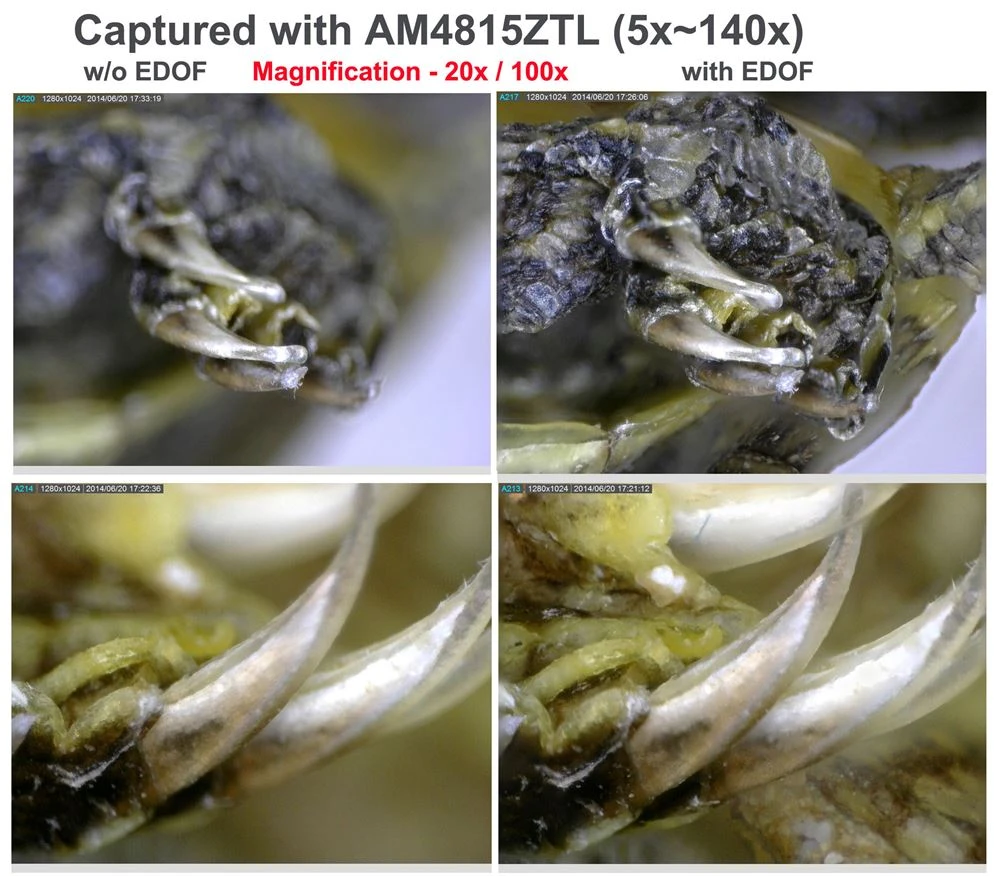

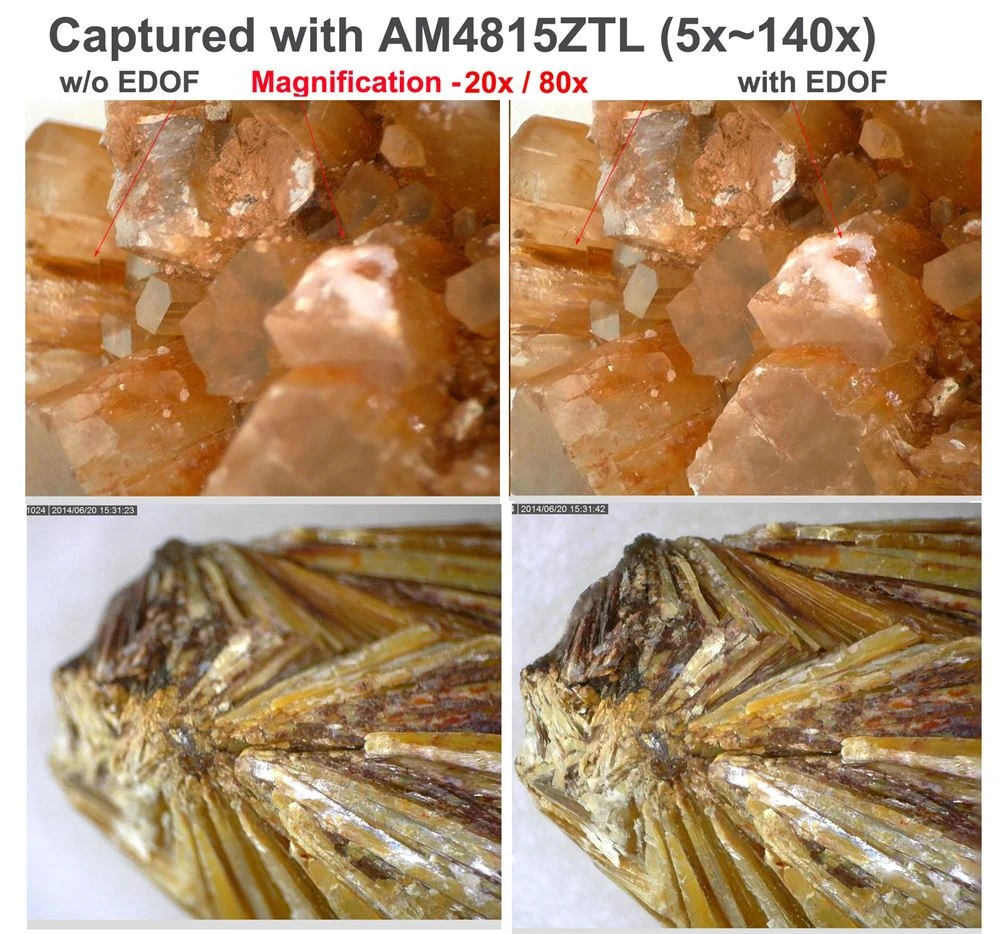

• EDOF (Extended Depth of Field) see example in images, combines images at different focus levels for overall clarity on uneven surfaces (Windows only)
• EDR (Extended Dynamic Range) combination of images at different levels of exposure for clarity (Windows only)
• AMR (automatic magnification reading) shows clearly the level of magnification through the software (Windows only)
• Long working distance 40mm-150mm from object to allow space for working on an object
• 10x – 140x continuous adjustable magnification
• Polarizer filter allows you to reduce or eliminate glare on reflective surfaces and also can provide the ability to see through the surface of fully or partially transparent materials, such as textiles, paint, glass, and plastic
• Complete with software (Windows and Mac compatible – read more here) and all necessary cables, simple USB 2.0 setup
• Annotate and measure images to 0.001mm
• Flexible control of the 8 LED lighting
• Robust metal body with simple to operate dials for focus and polarisation

More details in ‘Specification’ tab below.

Available Accessories: Stands & stand accessories (see ‘Recommended’ items below), Image capture footswitch for hands-free operation (see below), WiFi streamer for wireless video streaming to mobile or desktop devices.
